Grafana + Prometheus + fping-exporter 搭建网络监控

前言

最近没什么小鸡可玩，跟着论坛里的大佬们学着折腾Grafana + Prometheus搭建探针，却发现没有大佬发过用这个搭建网络监控的教程，于是自己研究琢磨搓出来一个初步面板，供感兴趣的鸡友们参考。

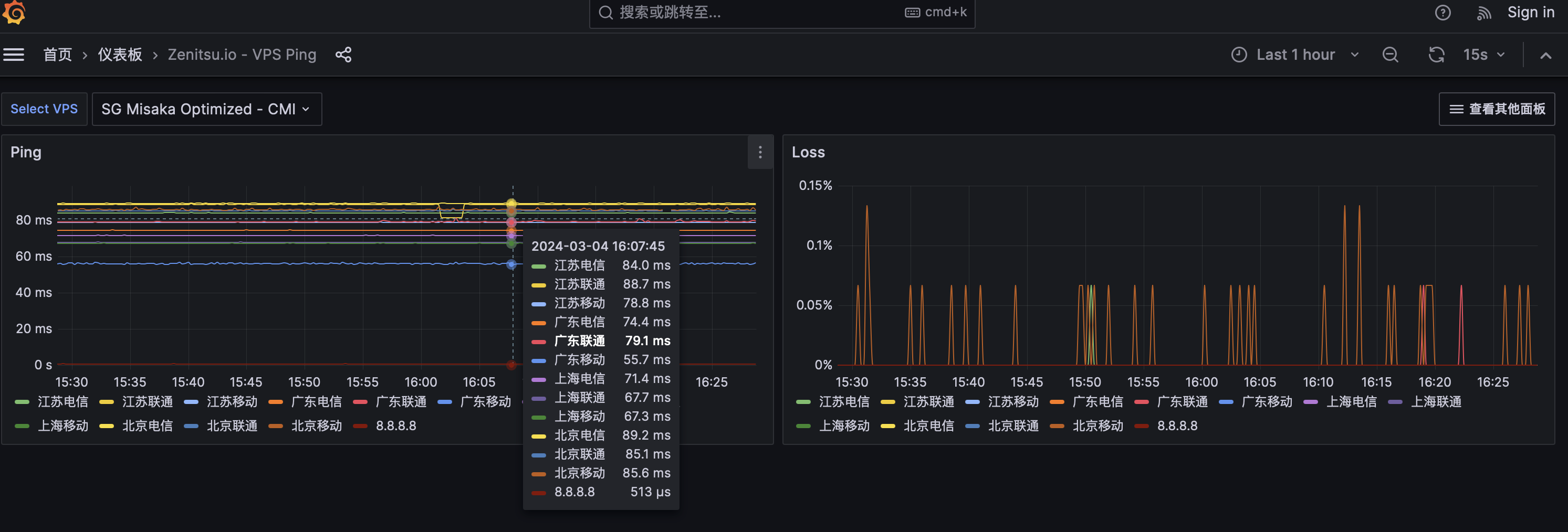

效果预览

https://grafana.zenitsu.io/d/a2c1044e-f262-4dab-9caf-18fed03ee08c/zenitsu-io-vps-ping?orgId=1&refresh=15s

部署流程

1.在面板机上安装Grafana:（参考: https://www.nodeseek.com/post-15265-1 省略掉安装Node Exporter的部分）

sudo apt-get install -y software-properties-common
sudo add-apt-repository "deb https://packages.grafana.com/oss/deb stable main"
sudo wget -q -O - https://packages.grafana.com/gpg.key | sudo apt-key add -
sudo apt-get update
sudo apt-get install grafana

2.在面板机上安装Prometheus:（参考：https://www.nodeseek.com/post-15265-1 省略掉安装Node Exporter的部分）

wget -qO- 'https://raw.githubusercontent.com/AhFeil/bash-script/main/install-prometheus.sh' | sudo bash

3.在需要被监控的机器上安装fping-exporter:

安装docker:

curl -fsSL https://get.docker.com | bash -s docker

docker运行fping-exporter:

docker run -d --name fping-exporter --restart=always --privileged --privileged --network="host"  -p 9605:9605 xiaoleizhang/fping-exporter:4.2 fping-exporter --fping=/usr/sbin/fping -c 15 -p 15

确认是否成功运行: (15s后本机运行)

curl http://127.0.0.1:9605/probe?target=8.8.8.8

4.在prometheus配置文件中添加Job并保存:

  - job_name: HK AperNet Elite - AS9929 #修改为你希望用来选择VPS的名字
    metrics_path: /probe
    static_configs:
    - targets:
      - "58.215.210.220"
      - "122.96.235.165"
      - "36.156.92.132"
      - "183.36.23.111"
      - "112.90.211.100"
      - "183.240.65.191"
      - "101.227.191.14"
      - "59.81.65.42"
      - "183.194.219.220"
      - "220.181.173.35"
      - "202.108.29.159"
      - "222.35.73.1"
      - "8.8.8.8"
    relabel_configs:
    - source_labels: [__address__]
      target_label: __param_target
    - source_labels: [__param_target]
      target_label: instance
    - target_label: __address__
      replacement: 修改为被控机IP:9605

  - job_name: HK V.PS - CMI #修改为你希望用来选择VPS的名字
    metrics_path: /probe
    static_configs:
    - targets:
      - "58.215.210.220"
      - "122.96.235.165"
      - "36.156.92.132"
      - "183.36.23.111"
      - "112.90.211.100"
      - "183.240.65.191"
      - "101.227.191.14"
      - "59.81.65.42"
      - "183.194.219.220"
      - "220.181.173.35"
      - "202.108.29.159"
      - "222.35.73.1"
      - "8.8.8.8"
    relabel_configs:
    - source_labels: [__address__]
      target_label: __param_target
    - source_labels: [__param_target]
      target_label: instance
    - target_label: __address__
      replacement: 修改为被控机IP:9605

5.重启Prometheus:

sudo systemctl restart prometheus

6.Grafana 导入模版:
下载模版：https://raw.githubusercontent.com/314wave314/Pic/main/Zenitsu.io%20-%20VPS%20Ping%20Template.json
上传json文件导入（参考：https://www.nodeseek.com/post-15265-1 关联Prometheus和导入仪表板模版的部分）

大功告成

其他参考资料:
通过prometheus,fping-exporter监控网络质量，并用grafana出图
全国 34 省份 TCPING v4 IP
